JIMWAY Skirtboard Sealing System

The JIMWAY Skirtboard Sealing System is designed to eliminate material spillage and dust leakage at conveyor loading points, ensuring cleaner, safer, and more efficient operations. Featuring a dual-layer sealing structure of a flexible PU top layer and a durable SBR rubber base. It creates a tight seal against the conveyor belt without causing wear or drag. The system maintains consistent contact even under heavy load and vibration, preventing material loss and air pollution around the conveyor line.

Built for quick installation and long service life, the Skirtboard Sealing System uses an innovative clamp-mounted design that requires no special tools and minimizes downtime during maintenance. Ideal for high-volume material handling environments, it helps improve belt tracking, reduce cleanup costs, and extend the life of conveyor components.

Adjustable Dual-Layer Design:
- First Layer: Prevents material spillage at the loading zone.
- Second Layer: Stops dust leakage for cleaner, safer operations.

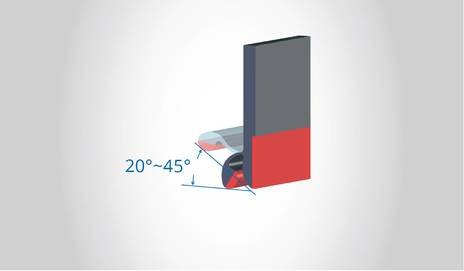

- Adjustable angle of the second layer from 20°–45° for optimal sealing efficiency.
Bi-Material Construction:
- Red PU Surface (55 mm height): Provides flexibility and high wear resistance.
- Black SBR Rubber Base: Offers strength and stability under continuous impact.
- Combination extends overall skirtboard service life and minimizes belt wear.
Standard & Custom Sizes:
- Standard Specs: Height 120 / 150 / 200 mm; Thickness 12 / 15 mm.
- Non-Standard Options: Height 100 / 180 / 250 / 300 mm; Thickness 10 / 20 mm.
Fast, Tool-Free Installation:

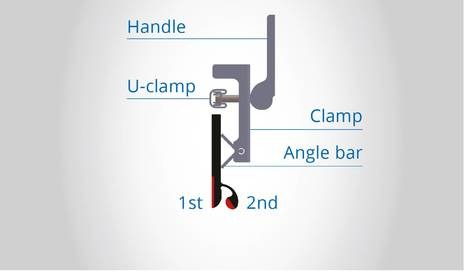

- Installed using U-clamps welded every 500 mm, ensuring a secure hold.
- No tools required—simply clamp and lock into place.
- Quick slide-in replacement reduces downtime and improves maintenance safety.
Enhanced Performance & Safety:
- Prevents belt mistracking, spillage, and dust pollution.
- Reduces clean-up time, maintenance labor, and overall operational costs.
- Belt-friendly material minimizes wear and friction during continuous contact.

Common Industries That Use This Product

Power Generation & Biomass Handling

Coal and biomass conveyors in power plants face high-speed transfers where dust and fines easily escape. The JIMWAY dual-sealing system keeps materials contained, reducing air pollution and improving operator visibility around conveyors. The design’s easy clamp-on installation allows maintenance crews to replace or adjust seals without belt downtime. This contributes to safer, cleaner energy handling systems with improved operational efficiency.

Fertilizer & Chemical Plants

In fertilizer and chemical facilities, airborne dust and material leakage can cause contamination and safety issues. The Skirtboard Sealing System provides a reliable seal that resists chemical corrosion and high humidity. Its flexible polyurethane layer conforms closely to the belt surface, even under fluctuating load pressures. This ensures a dust-free, low-maintenance operation while extending equipment life in corrosive environments.

Pulp & Paper Industry

Paper mills and pulp processing facilities generate fine fibers and wet pulp residues that easily escape from conveyor sides. The JIMWAY Skirtboard Sealing System maintains a tight, flexible seal that adapts to uneven loads and moisture conditions. The PU surface sheds pulp buildup while the rubber base keeps the seal stable under continuous operation. This combination minimizes spillage, keeps walkways dry, and contributes to smoother material transfer in humid, high-speed systems.

Construction & Building Materials

In construction material plants producing concrete, tiles, or aggregates, spillage and dust can quickly accumulate around conveyors. The Skirtboard Sealing System provides effective containment for heavy, dry, or powder-based materials at transfer points. Its adjustable sealing angle ensures optimal fit across different conveyor trough designs, keeping cement and dust fully contained. This reduces manual cleanup time and enhances site safety around crushers and batching lines.
