JIMWAY Diagonal Plow Belt Cleaner

The Jimway Diagonal Plow Belt Cleaner provides reliable, belt-safe cleaning performance for conveyors that operate in both directions. Designed for belt widths ranging from 600 mm to 2000 mm (24″–78″) and speeds up to 6.5 m/s, it is ideal for multi-directional material handling systems that demand consistent cleanliness and minimal maintenance.

Its diagonal PU blade sweeps materials off the return side of the belt without damaging the surface or splices. The gravity-adjusting mechanism automatically maintains optimal pressure, eliminating the need for manual adjustments or tensioning. This self-adjusting feature ensures long-term performance, reduces material build-up on the tail pulley, and minimizes downtime. With an easy blade replacement design and durable, belt-friendly construction, the Jimway Diagonal Plow Belt Cleaner delivers efficient, worry-free cleaning for a wide range of applications.

The Diagonal Plow Belt Cleaner is suitable for reversible conveyors with belt widths from 600 to 2000 mm and belt speeds up to 6.5 m/s. It uses a polyurethane (PU) blade to provide smooth, safe, and effective cleaning in both directions.

Diagonal PU Blade

Designed specifically for reversible belt systems.
Gentle on belts and splices — no risk of wear or damage.
Reduces residue build-up on the tail pulley to prevent premature wear.
Quick, tool-free blade replacement for easy maintenance.
Extends belt and component lifespan through consistent cleaning performance.

Adjusting by Gravity

Self-adjusting system automatically regulates blade pressure.
Requires no manual tensioning or scheduled maintenance.
Ensures reliable, uniform contact for long-lasting operation.

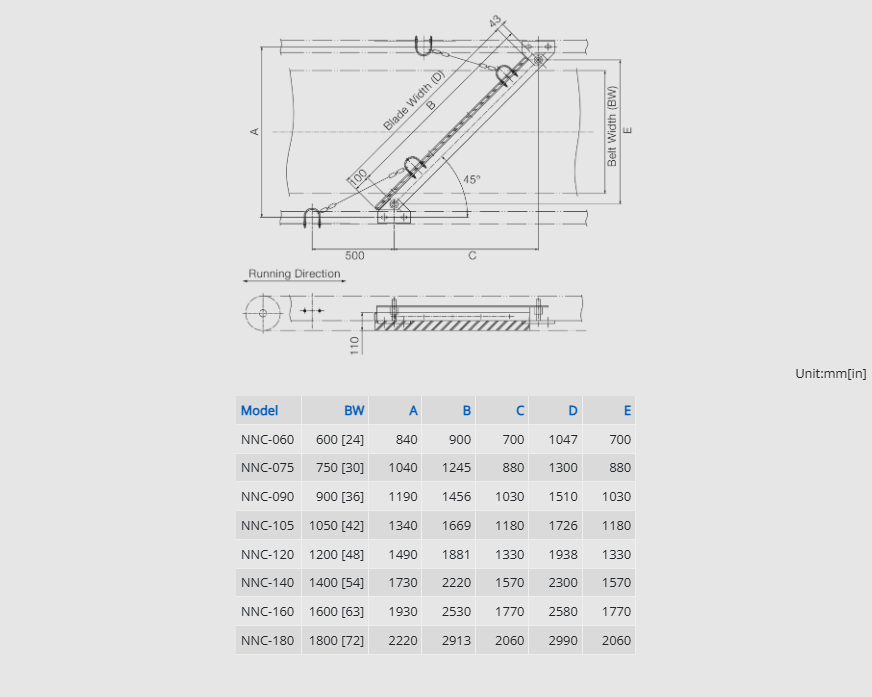

Specifications

Common Industries That Use This Product

Wood and Forestry Conveying Systems

In sawmills and biomass facilities, sawdust and wood chips often accumulate beneath the return side of conveyors. The Jimway Diagonal Plow Belt Cleaner removes these residues efficiently on reversible belts, protecting pulleys and preventing belt damage. Its gravity-adjusted system ensures constant pressure, providing smooth, maintenance-free operation in dusty or high-moisture environments.

Port and Marine Loading Terminals

Ports that handle bulk materials such as fertilizer, grain, or minerals benefit from reversible conveyors for flexible loading and unloading. The Diagonal Plow Belt Cleaner keeps the return belt clear in both directions, minimizing spillage and reducing corrosion risk on tail pulleys. Its robust PU blade withstands coastal humidity and abrasive materials while ensuring safe belt contact.

Agricultural Grain and Feed Handling Facilities

Agricultural conveyors that handle grains, seeds, and feed pellets often use reversible systems for flexible operation. The Diagonal Plow Belt Cleaner prevents build-up of fine particles on the return belt, helping maintain smooth operation and product cleanliness. The blade’s self-adjusting gravity system makes it ideal for rural environments where low maintenance and reliability are essential.

Recycling and Waste Facilities

In recycling plants, belts may reverse to redirect materials or clear jams. The Jimway Diagonal Plow Belt Cleaner efficiently removes debris and sticky materials during both forward and reverse operation. Its gravity-based pressure adjustment ensures consistent cleaning regardless of direction, keeping the system clean and reducing manual cleaning frequency in busy, high-throughput facilities.
