JIMWAY V-Plow Belt Cleaner

Engineered for simplicity and long-term performance, the Jimway V-Plow Belt Cleaner keeps your conveyor return side free from unwanted debris that could damage pulleys or cause belt misalignment. Designed for belt widths between 600 mm and 2000 mm (24″–78″) and operating speeds up to 6.5 m/s, it offers dependable cleaning for one-directional belts. The arc-shaped PU blade is gentle on both the belt and splices, ensuring safe, consistent contact without the risk of scratching or gouging. Its gravity-based adjustment system automatically maintains optimal pressure, eliminating the need for manual tuning or complex maintenance. With easy blade replacement and a design focused on durability and efficiency, the Jimway V-Plow Belt Cleaner provides reliable protection for any conveyor system handling loose or sticky materials.

The V-Plow Belt Cleaner supports belt widths from 600 to 2000 mm, belt speeds up to 6.5 m/s, and is designed for one-direction cleaning with a durable polyurethane blade.

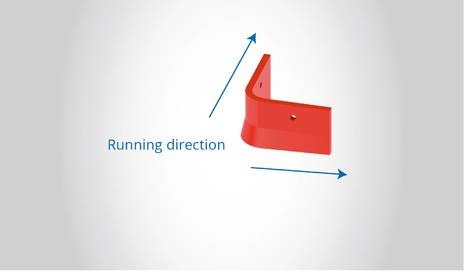

Arc-Shaped PU Blade

Gentle on belts, splices, and components — no risk of surface damage.
Effectively reduces residue accumulation on the tail pulley.
Quick and easy blade change minimizes downtime.
Extends belt service life and enhances conveyor reliability.

Adjusting by Gravity

Self-adjusting mechanism automatically maintains blade pressure.
Requires no manual tensioning or maintenance, providing a true “fit-and-forget” cleaning solution.

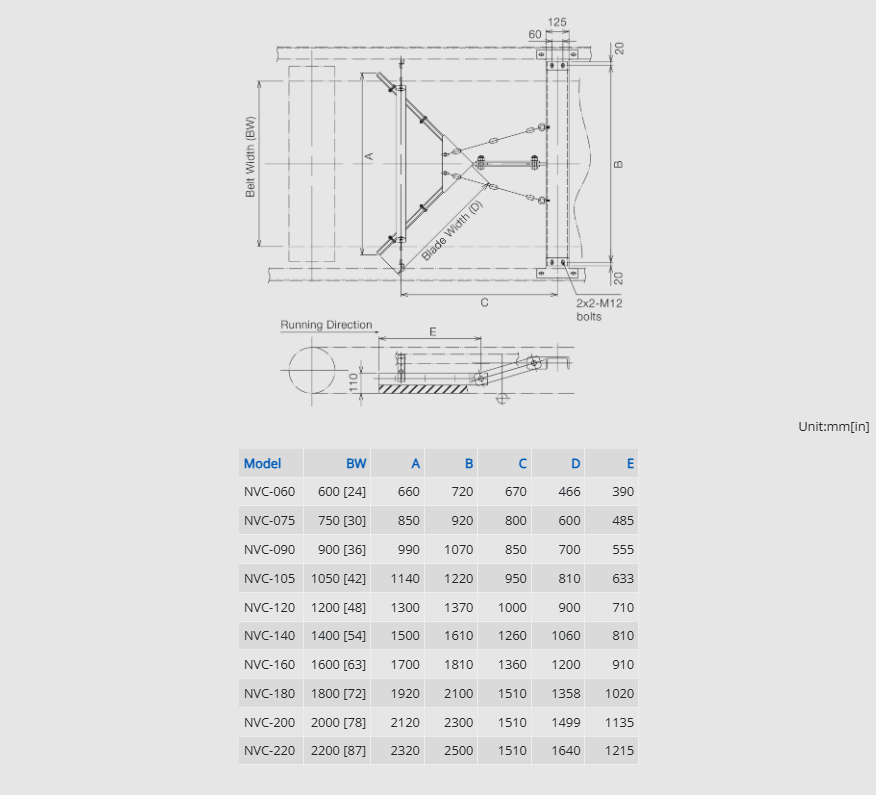

Specifications

Common Industries That Use This Product

Grain Storage and Handling Facilities

In grain silos and feed mills, spilled grain and dust often collect on the return side of conveyor belts. The Jimway V-Plow Belt Cleaner prevents this build-up by sweeping loose material away before it reaches the tail pulley. Its gravity-adjusting system keeps cleaning pressure consistent, reducing spillage and prolonging belt life. This helps maintain smooth operation and minimizes fire hazards in dusty agricultural environments.

Biomass and Renewable Energy Plants

Biomass conveyors often handle materials like wood chips, sawdust, or organic waste that can easily accumulate beneath the belt. The V-Plow Belt Cleaner automatically removes this material using gravity-adjusted pressure, preventing blockages and improving safety. With no maintenance requirements, it offers long-term dependability in harsh, dusty energy-plant environments.

Food Processing and Packaging Lines

In food packaging or ingredient transport systems, cleanliness and hygiene are critical. The Jimway V-Plow Belt Cleaner’s polyurethane blade gently removes fine residues such as flour, sugar, or starch without damaging the belt. Its simple, maintenance-free design helps ensure continuous operation while maintaining sanitary standards across production lines.
