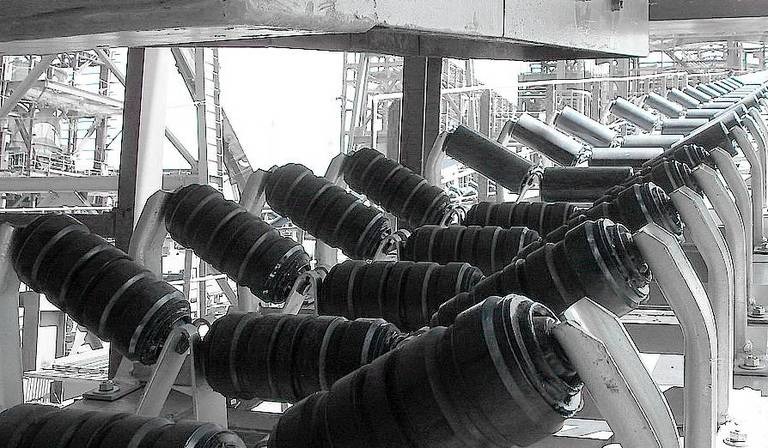

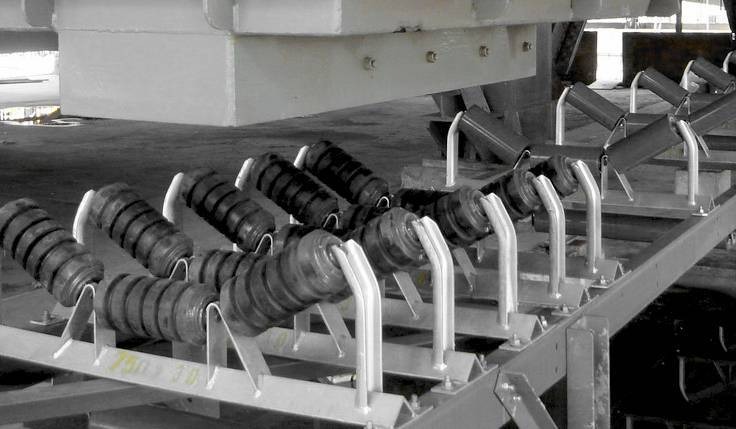

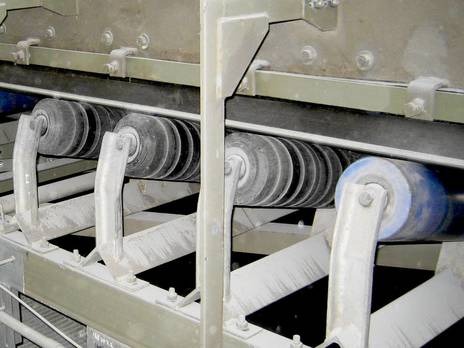

JIMWAY Impact Roller

The JIMWAY Impact Roller is engineered to absorb shock and protect conveyor belts in loading and transfer areas where material impact is at its highest. Built with high-quality resilient rubber rings, these rollers cushion the belt surface and prevent damage from falling, abrasive, or heavy materials. Each roller features precision-machined bearing housings, deep-groove sealed bearings, and unique labyrinth seals that ensure long service life in dusty, wet, or corrosive conditions.

Designed to meet international standards such as JIS, CEMA, DIN, and ISO, the JIMWAY Impact Roller delivers superior durability, reduced maintenance costs, and enhanced operational safety. Whether installed under chutes, crushers, or transfer points, it keeps conveyors running smoothly while extending the lifespan of belts and system components.

Built to International Standards: Designed according to JIS, CEMA, DIN, and ISO specifications to ensure compatibility with most industrial conveyors.
Precision Bearings: Fitted with 6204–6308 2RS deep-groove ball bearings for smooth, quiet operation and reduced heat buildup under heavy loads.
Customizable Dimensions: Available in roller diameters Ø90–Ø200 mm (Ø3.5”–Ø7.9”) and tailored lengths to suit any conveyor configuration.
High-Performance Rubber Material:
- Resilient and FRAS-certified rubber discs provide superior shock absorption and flame retardancy (UL 94 V-0).
- Prevents belt damage, reduces vibration, and improves occupational safety at impact zones.
CNC-Machined Components: Bearing housings are CNC-milled and automatically circumferentially welded for strength and precise alignment.
Unique Labyrinth Seals:
- Non-contact seal design prevents water and dust intrusion while minimizing roller drag.
- Low friction reduces energy use and enhances bearing life.
- Ensures reliable operation even in harsh or outdoor environments.

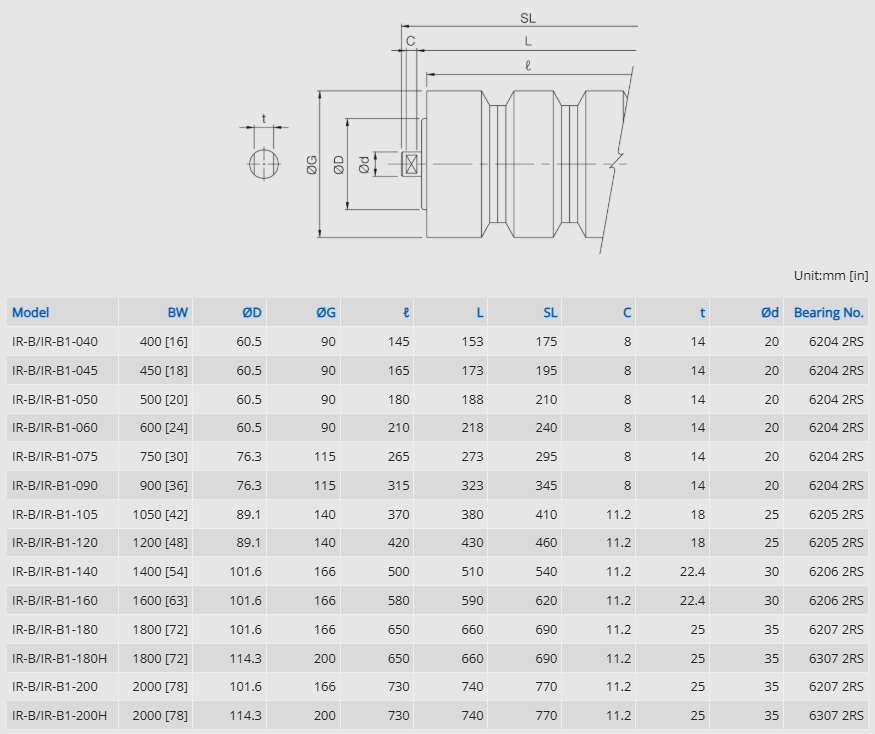

Specifications

Common Industries That Use This Product

Mining & Quarrying

In mines and quarries, heavy rocks and minerals often fall directly onto conveyor belts during loading. The JIMWAY Impact Roller absorbs the shock from this material drop, protecting the belt from tears and premature wear. Its rubber discs and deep-groove bearings withstand constant vibration and dust exposure. As a result, it ensures continuous, safe, and efficient material transport in some of the harshest operating environments.

Aggregate & Cement Production

Aggregate and cement plants use impact rollers beneath transfer points where limestone, sand, and clinker are dropped onto conveyors. The rollers’ resilient rubber rings dissipate impact energy and minimize belt sagging, helping to maintain alignment and stability. Their flame-retardant FRAS rubber enhances workplace safety in dusty or high-temperature areas. Over time, this durability translates into lower maintenance costs and extended belt life.

Coal & Power Generation

At coal handling facilities and biomass power plants, JIMWAY Impact Rollers provide essential belt protection at receiving hoppers and conveyor transitions. The flame-retardant rubber construction prevents fire hazards, while non-contact labyrinth seals protect against moisture and fine coal dust. This design reduces roller drag, lowers energy consumption, and minimizes bearing failure. Power stations benefit from safer, more reliable conveyor performance with less downtime.

Recycling & Waste Management

Recycling facilities handle materials of varying sizes and densities that can strike the belt surface unpredictably. These impact rollers absorb vibration and shock effectively, preventing belt damage and keeping material flow stable. The sealed bearing design protects internal components from contamination caused by dirt or moisture. The result is longer roller life and less frequent replacement in high-volume recycling operations.
