JIMWAY HDPE Roller

The JIMWAY HDPE Roller is a lightweight, corrosion-resistant alternative to traditional steel rollers, designed for superior performance in wet, dusty, or corrosive environments. Constructed from high-density polyethylene (HDPE), it provides excellent impact resistance, low noise operation, and minimal material buildup — making it ideal for industries that require clean, low-maintenance conveying solutions.

Each roller is precision-engineered with CNC-machined shafts, premium sealed bearings, and multi-labyrinth seals to ensure long-lasting durability and consistent belt tracking. With reduced rolling resistance and outstanding resistance to rust and chemicals, JIMWAY HDPE Rollers deliver dependable performance, longer service life, and lower total operating costs for modern conveyor systems.

Built to International Standards: Manufactured according to JIS, CEMA, DIN, or ISO standards, with customization available for specific system requirements.
High-Precision Bearings: Uses 2RS deep groove ball bearings (6204–6308) from trusted brands like NTN, SKF, FAG, and C&U, providing smooth operation and excellent heat control.
Customizable Sizes: Available with pipe diameters Ø89.1 mm to Ø159 mm and shaft diameters Ø20 mm to Ø35 mm, adaptable to various conveyor designs.
CNC-Machined Shaft: Machined to JIS h7 tolerance, ensuring perfect alignment, smooth rotation, and reduced vibration.
Premium Bearing Housing: CNC machined to JIS N7 seat tolerance, ensuring secure bearing fit and structural stability.

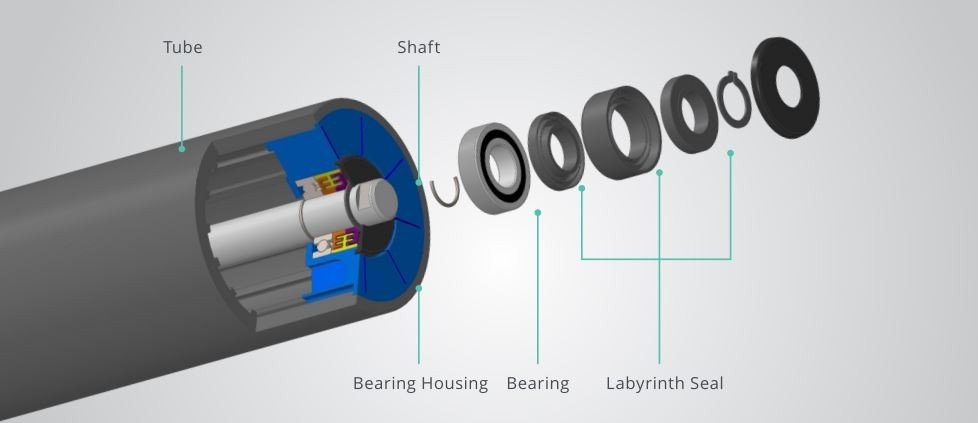

Advanced Labyrinth Seals:
- Grease-filled multi-labyrinth design prevents dust, water, and contaminant intrusion.
- Maintains flexibility with excellent compressibility and resilience across a wide temperature range.
Long-Life Grease: Filled with high-quality lubricant suitable for -20°C to +65°C and -40°C to +65°C environments, ensuring efficiency and power savings.
Powder-Coated Metal Components:
- Eco-friendly coating applied in 50–300 μm layers for impact and corrosion resistance.
- Rust removal and degreasing steps enhance coating adhesion and extend roller lifespan.
Lightweight & Energy Efficient: The HDPE material significantly reduces roller weight, resulting in lower energy use, quieter operation, and easier maintenance.

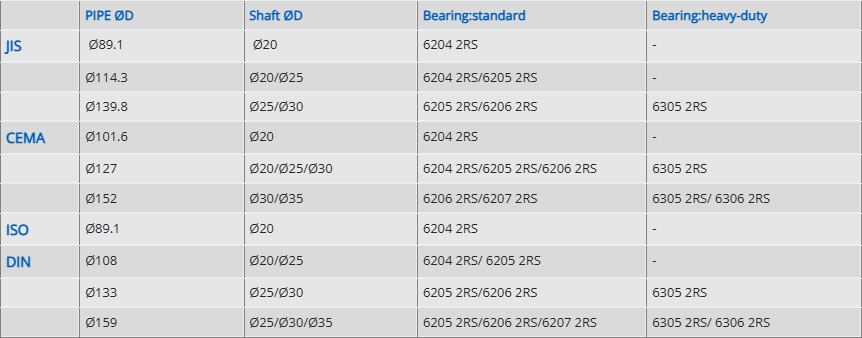

Specifications

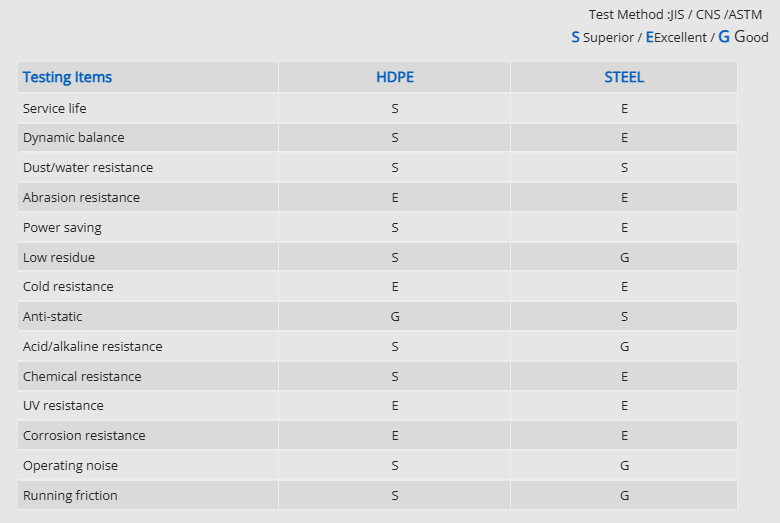

Testing

Common Industries That Use This Product

Mining & Quarrying

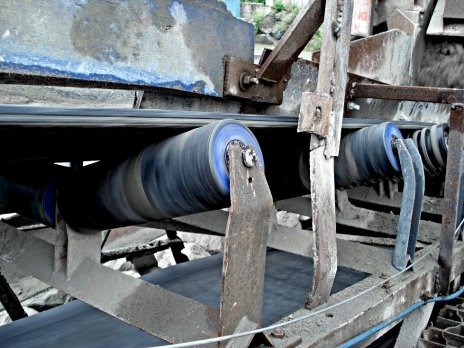

In the mining industry, JIMWAY HDPE Rollers are used on conveyors that transport crushed stone, sand, and ore through harsh outdoor environments. Unlike steel rollers, they resist corrosion and material buildup caused by moisture and fine dust. Their lightweight design reduces power consumption and simplifies installation in remote or high-elevation conveyor systems. Over time, this contributes to higher uptime, reduced maintenance, and safer handling for maintenance crews.

Food & Beverage Processing

In food and beverage plants where hygiene and contamination prevention are critical, HDPE rollers offer a non-corrosive, easy-to-clean solution. The smooth polyethylene surface prevents residue accumulation and bacterial growth. These rollers operate quietly and maintain stability even in washdown conditions. They’re ideal for conveying packaged food, raw ingredients, or beverages where stainless steel or coated steel may not perform efficiently in humid environments.

Chemical & Fertilizer Plants

Chemical and fertilizer production environments are highly corrosive, which can quickly degrade metal rollers. JIMWAY HDPE Rollers stand up to chemical vapors, moisture, and salt exposure without rusting or pitting. Their precision bearings and sealed design protect against contamination while reducing friction and energy loss. This makes them an ideal choice for conveyors handling powder, granules, or treated materials in aggressive chemical atmospheres.

Waste & Recycling Facilities

Recycling plants and waste processing facilities use HDPE rollers on conveyors that carry mixed materials and debris. Their impact resistance and non-stick surface prevent jamming and buildup from wet waste or sticky recyclables. The sealed labyrinth system keeps dust and contaminants out of the bearings, even under constant exposure to dirt and moisture. Operators benefit from reduced maintenance costs and improved conveyor reliability in tough, high-throughput environments.
