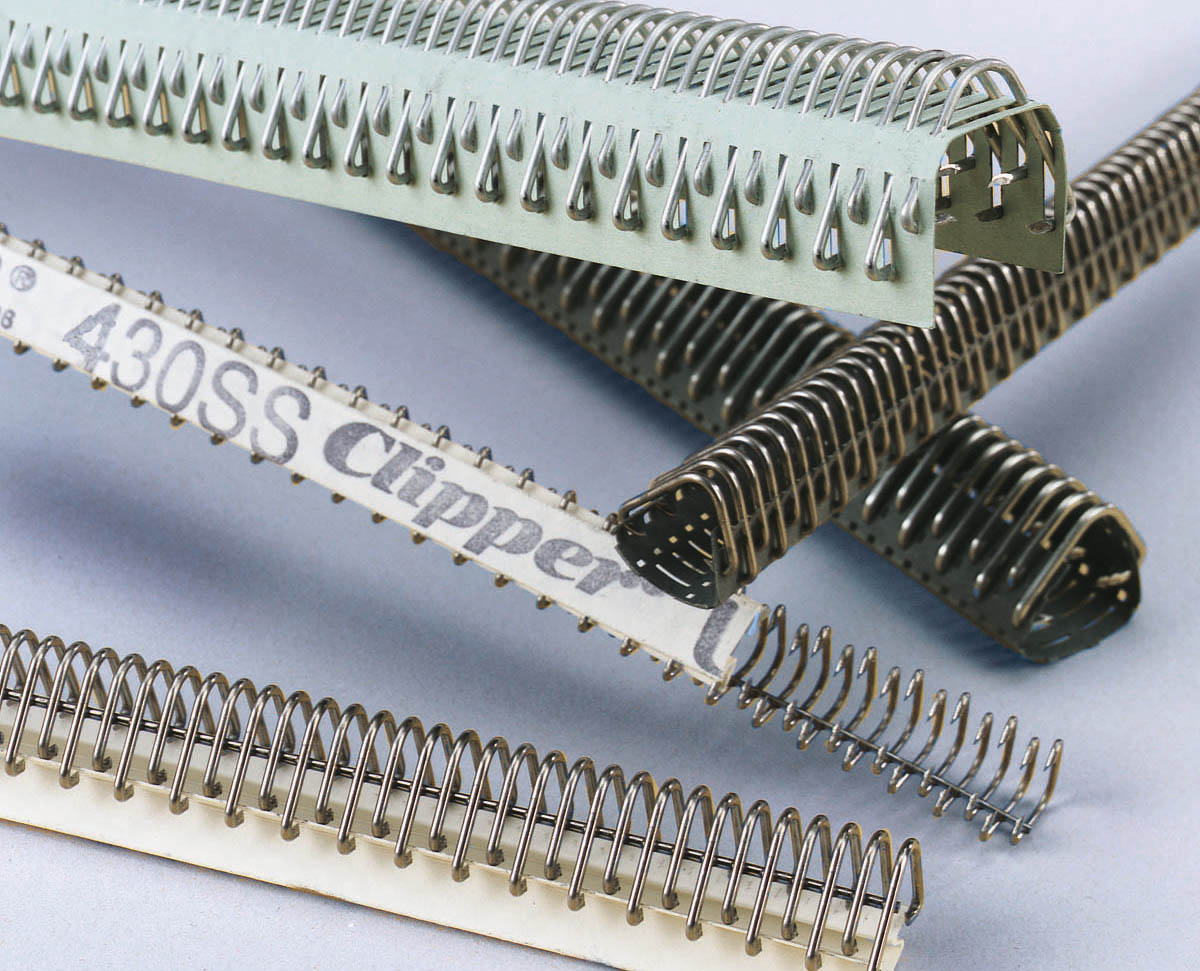

The Clipper^® Wire Hook Fastening System is designed with a variety of different wire diameters, leg and point lengths, metals, strip lengths, and styles to meet your individual application needs.

WHY WIRE HOOKS?

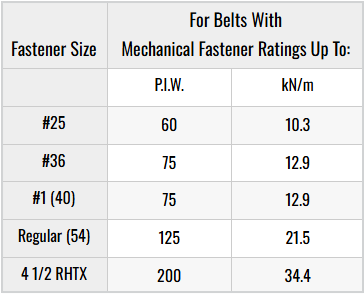

• Mechanical fastener rating up to 200 PIW (35 kN/m)
• Belts up to 25/64” (10 mm) thick
• Minimum pulley diameter from 15/16” to 7” (24 mm to 175 mm)
• Available in two hook styles:

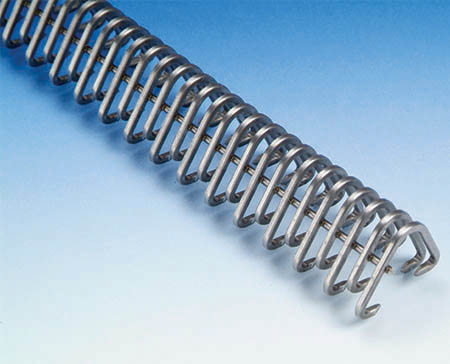

  • Unibar^® Fasteners – welded to a common bar to enhance installation safety and ease meshing of belt ends

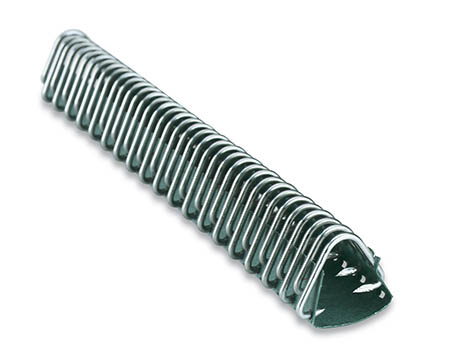

  • Carded Fasteners – individual hooks secured on carding paper for safe handling
• Low-profile design is conveyor component compatible
• Quiet operation when contacting pulley and other conveyor components
• Double-staggered grip pattern offer exceptional holding power, does not degrade integrity of belt
• Quick, economical installation

INSTALLATION METHOD

Maintenance Lacers with Roller Lacing Technology™ – Lightweight, portable installation tools which gently and precisely roll the hooks into the belt for a low-profile splice Production Lacers – For high-volume production lacing Specialty Lacers – Featuring continuous lacing
