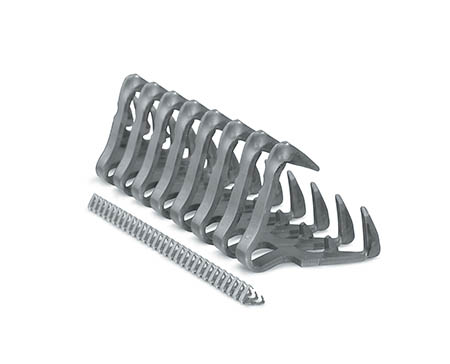

ALLIGATOR® LACING FASTENING SYSTEM
The Alligator
® Lacing Fastening System is ideal for easy, economical installation of a low-profile belt splice. Available in continuous lengths, the system fits any belt width and provides uniform tension across the full belt width.
WHY LACING?

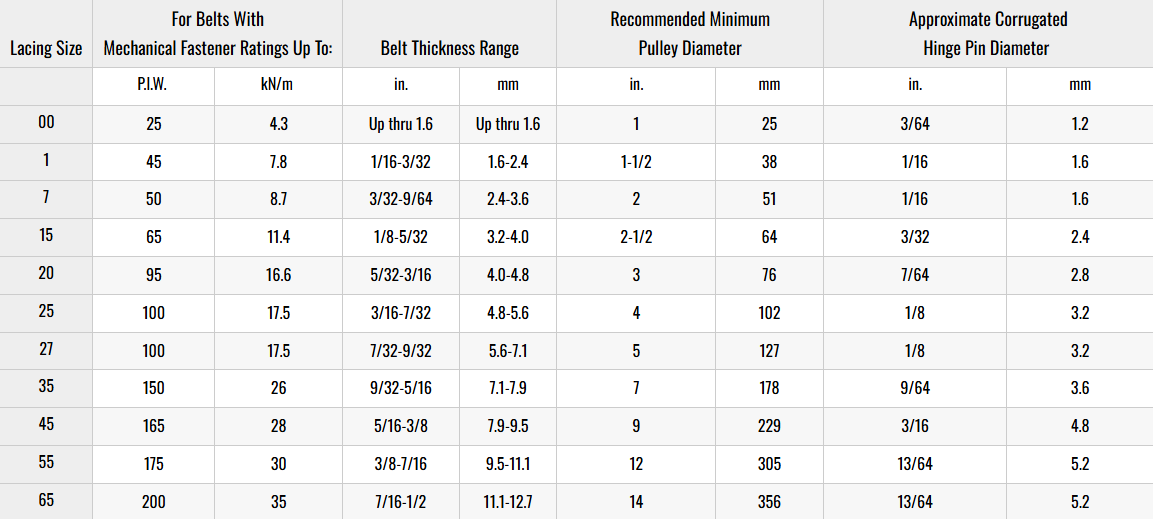

- Mechanical fastener rating up to 200 PIW (35 kN/m)
- Belts up to ½” (13 mm) thick
- Minimum pulley diameter from 1-14” (25 mm-350 mm)
- Engineered to prevent pieces from working loose from the belt and into the product
- Removable hinge pin allows for easy cleaning and sanitation of belts
- Teeth embed lengthwise in the belt, providing a strong, vice-like hold.

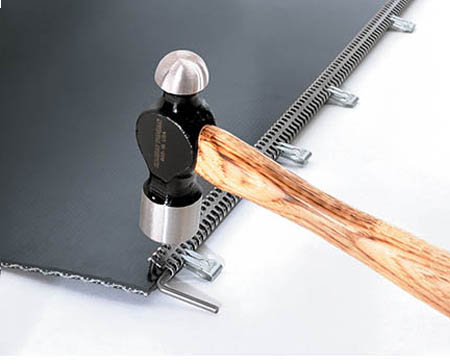

INSTALLATION METHOD
- Portable tooling
- Hand installation
- Agriculture
